Industrial Transponders

An RFID medium in 125 kHz (LF), 13.56 MHz (HF) and 868 MHz (UHF) and in a combination of these frequencies in the form of a key fob for access control systems or time and attendance systems, for example, optionally with logo printing and/or numbering.

Cable Transponder
CBT813

RFID cable clip for easy and quick identification of cables up to a thickness of 8 mm, ideally suited for cable management.

  • Diameter (mm): 8

  • Height (mm): 13

  • Material: nylon

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: black

  • Option: laser engraving

  • Available technologies

CBT1718

RFID cable clip for easy and quick identification of cables up to 17 mm thick, ideal for cable management.

  • Diameter (mm): 17

  • Height (mm): 18

  • Material: nylon

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: schwarz

  • Option: laser engraving

  • Available technologies

CBT2025

RFID cable transponder with a 7cm cable tie that cannot be reused after disassembly. With this solution you ensure that the transponder cannot be accidentally mounted on another component after use.

  • Size (mm): 29 x 22 x 4

  • Cable length (mm): 70

  • Material: nylon

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: diverse

  • Option: laser engraving

  • Available technologies

CBT3015

RFID cable transponder with a 15cm cable tie that cannot be reused after disassembly. With this solution you ensure that the transponder cannot be accidentally mounted on another component after use.

  • Size (mm): 32 x 17 x 4

  • Cable length (mm): 175

  • Material: nylon

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: diverse

  • Option: laser engraving

  • Available technologies

CBT3018

The small transponder can be used with all standard cable ties up to a thickness of 3.9mm and is reusable after disassembly.

  • Size (mm): 30 x 18 x 2

  • Material: PVC

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: white

  • Option: laser engraving, digital printing

  • Available technologies

CBT4330

The small transponder can be used with all standard cable ties up to a thickness of 6.9mm and is reusable after disassembly.

  • Size (mm): 43 x 29 x 2

  • Material: PVC

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: white

  • Option: laser engraving, digital printing

  • Available technologies

Tag1818

The ideal cable tie solution for outdoors or in harsh environments. The transponder is shock-absorbing, waterproof and UV-resistant. The tunnel for the cable tie as well as the housing can be freely determined by a small surcharge.

  • Size (mm): 18 x 18 x 12

  • Cabel tunnel (mm): 10

  • Material: PVC

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: diverse

  • Option: laser engraving

  • Available technologies

NT

Resistant to moisture and temperature fluctuations, the ideal transponder for forestry.

  • Size (mm): 6 x 37

  • Head diameter (mm): 8

  • Material: POM

  • Operating temperature (°C): -20 -70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: black

  • Available technologies

CYT

The alternative to the glass transponder, robust and waterproof. Thanks to the magnetic core antenna, reading of a fully embedded transponder is also guaranteed.

  • Size (mm): 5 x 30

  • Material: POM

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: black

  • Available technologies

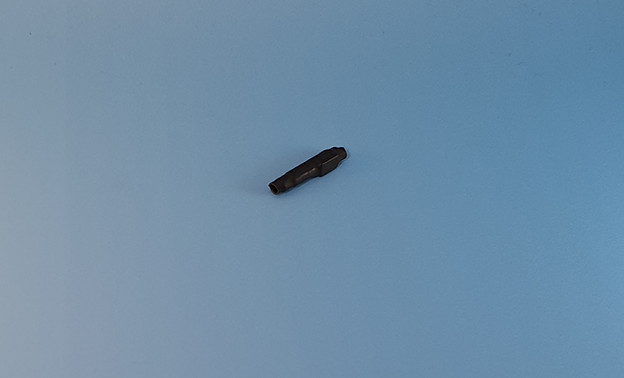

Coco

The ideal solution if the transponder is to be embedded but does not require additional protection by an extra housing.

  • Size (mm): 5 x 10

  • Material: PP

  • Operating temperature (°C): -20 - 70

  • Frequency: 125 kHz, 13.56 MHz

  • Color: black

  • Available technologies

OMT7032

Robust housing with two holes for fixing by screw or rivet. Suitable for applications on metal surfaces. Optional filling with epoxy is possible to ensure water resistance.

  • Size (mm): 70 x 33 x 9

  • Material: ABS

  • Operating temperature (°C): -20 - 85

  • Frequency: 125 kHz, 13.56 MHz, UHF

  • Color: black

  • Option: laser engraving, pad printing

  • Available technologies

OMT52

Robust housing with a hole for fixing by screw or rivet. Suitable for applications on metal surfaces. The housing is filled with epoxy and thus provides the IC with additional protection against water.

  • Size (mm): 52 x 8

  • Hole diameter (mm): 5

  • Material: ABS

  • Operating temperature (°C): -20 - 85

  • Frequency: 125 kHz, 13.56 MHz, UHF

  • Color: black, white

  • Option: laser engraving, pad printing

  • Available technologies

OMT3030

Suitable for use on metal surfaces. Available in various shapes, self-adhesive or with a hole for fastening with a screw.

  • Size (mm): 30 x 30 x 3

  • Material: PVC

  • Operating temperature (°C): -20 -70

  • Frequency: 125 kHz, 13.56 MHz, UHF

  • Color: white

  • Option: laser engraving, pad printing

  • Available technologies

UHF Tag

UHF transponder with robust housing, suitable for warehouse management or for marking pallets or containers.

  • Size (mm): 119 x 30 x 6

  • Material: ABS

  • Operating temperature (°C): -20 - 85

  • Frequency: 125 kHz, 13.56 MHz, UHF

  • Color: black

  • Option: laser engraving

  • Available technologies

UHF OMT

Highly robust UHF transponder that offers full functionality on metal and is specially designed for applications where very high temperatures occur.

  • Size (mm): 70 x 10 x 2

  • Material: fiberglass FR4

  • Operating temperature (°C): -20 - 200

  • Frequency: UHF

  • Color: black

  • Option: laser engraving

  • Available technologies

Hangtag

Soft and flexible UHF hanging transponder that can also be used as a key fob. A customized design can be realized by using the injection molding tool for a small extra charge.

  • Size (mm): 65 x 25 x 3

  • Material: PVC

  • Operating temperature (°C): -20 - 70

  • Frequency: UHF

  • Color: diverse

  • Available technologies

PVC Tag

The cost-effective yet robust solution for identifying and marking items and objects.
•    Diameter (mm): 18, 20, 25, 30, 40
•    Thickness (mm): 1.5
•    Material: PVC
•    Operating temperature (°C): -20 - 70
•    Color: white
•    Frequency: 125 kHz, 13.56 MHz

•    Available technologies

Clear Tag

Transparent and extra flat PVC transponders for identification and marking of objects that require a low installation height.
•    Diameter (mm): 18, 20, 25, 30, 40
•    Dicke (mm): 0.8
•    Material: PVC, PET
•    Operating temperatur (°C): -20 - 50
•    Color: white, transparent
•    Frequency: 125 kHz, 13.56 MHz
•    Available Technologies

E-Unit

The core of any transponder, RFID chip with antenna without additional packaging. Ideal for integration into own production processes.
•    Size: according to customer
     requirements
•    Form: round, square
•    Antenna: frequency individually
     adjustable
•    Available technologies

Ferrit Core Transponder
On-Metal-Transponder
UHF Transponder
Tags & E-Units
